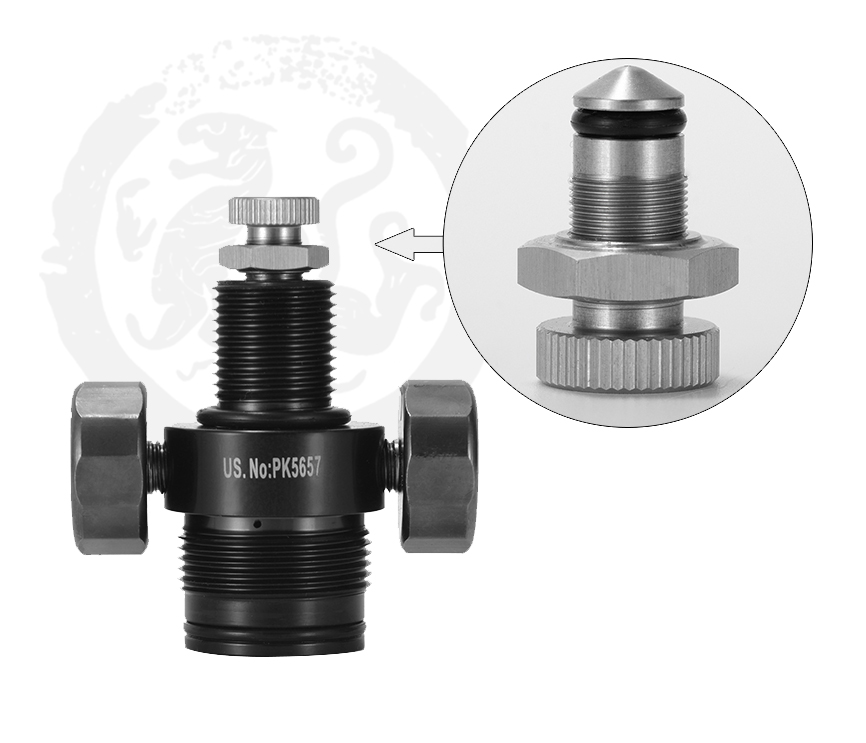

Cricket
The Cricket was born in 2009 and has 15 years of user experience. Undoubtedly, it is a very mature and stable product. The connection thread of the gas cylinder is M18 * 1.5. Our regulator also has excellent precision output pressure. The output pressure is 450~4350psi, which can be adjusted. Support valve customization.
The Airgun regulator with simple installation without adjustments on rifle, so everything can be returned back. All you need to do is unscrew the valve body from bottle (before screwing launch air). You need suitable stick and vise. Then screw regulator between the bottle and valve. Regulator with vented to atmosphere.
Product Details
The position of the manometer and quick fill pin can be selected before pressurizing. To fulfill the need to purchase painball coupling , which is the same as marauder or other rifle. After installing the regulator NEVER fill the old way, through the valve. At fill always open the valve bottle slowly and do not fill too quickly. After installing the regulator NEVER fill throught by valve on the airgun, only by quick fill on regulator. For the filling you must purchase paintball coupling, which is the same as gun marauder or more.
Years ago, we produced a new valve product for air guns. When we were asked by users to provide more efficient, easier to maintain and more cost-effective solutions, we launched cricket valve.
Good Sealability
The Cricket is made of stainless steel. The valve nozzle is integrated with the air chamber. The structure is simple and reliable. A sealing ring is installed at the joint of the valve and the air chamber. When the valve is open, the gas will not leak. The decompression capacity of the product is 19.5 CC.
When we decided to be part of the airgun industry, we also made the decision to ensure that players had the precise and stable valves they needed to enter the game.
Stable Pressure Regulation
Its pressure regulation is very sensitive. One of the advantages is that the pressure can be adjusted as needed, the adjustment accuracy can reach below 5 bar, and the adjustment range is between 1 and 30 MPa.
In cold winter, hot summer, high altitude mountains or other harsh environments, gas valves are usually prone to failure. Our valves have been continuously improved to reduce the occurrence of various faults.

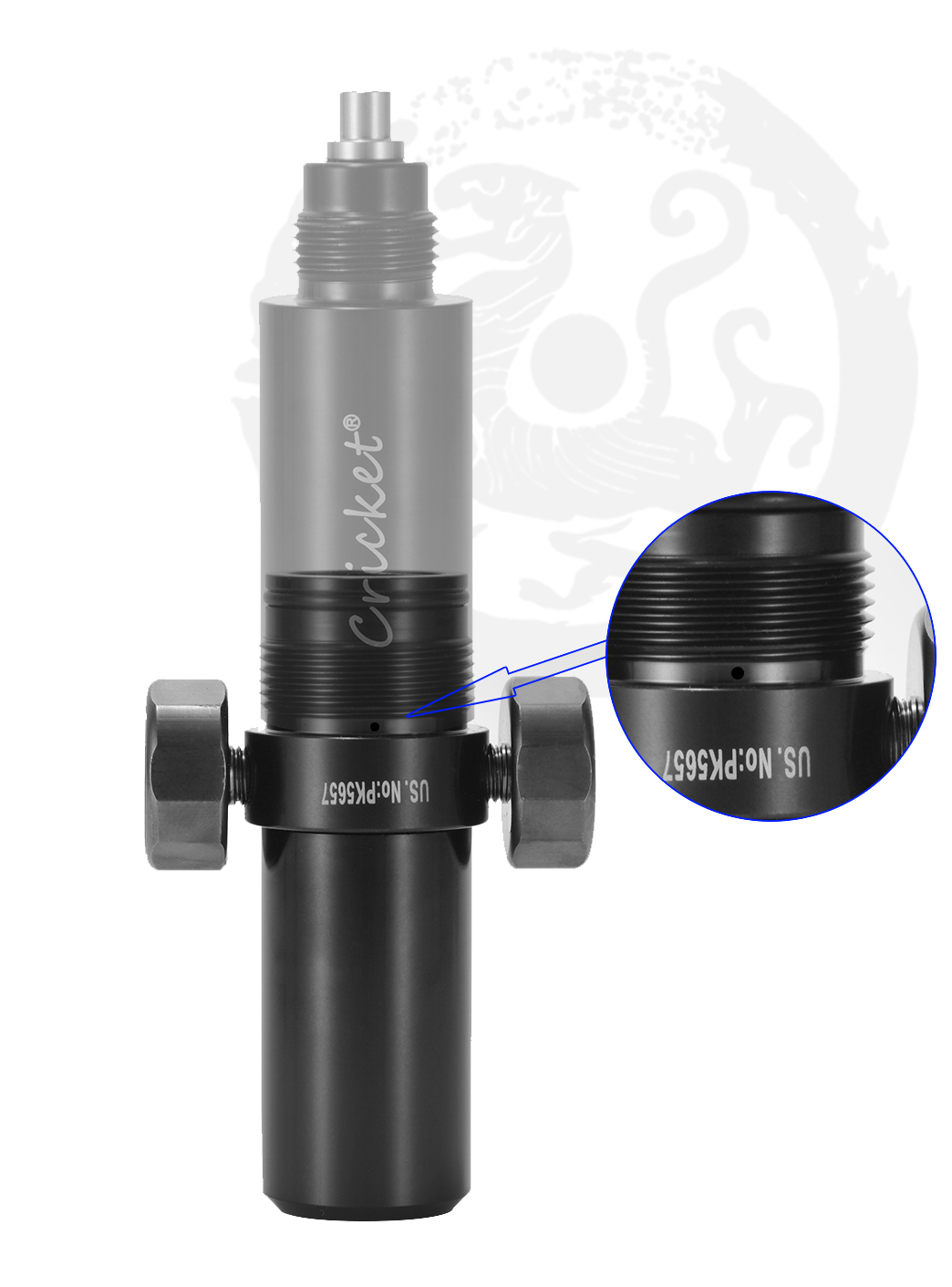

Built-in Breathing Hole
The breathing hole is located on the thread connecting the air chamber and the base. Even if it is used under the harsh outdoor environment, it will not malfunction. If you want to use your equipment in harsh environments, this Cricket valve is definitely suitable for you.
Precision disc reeds are used in the interior, with short travel, large load, small space required, easy combination, easy maintenance and replacement.

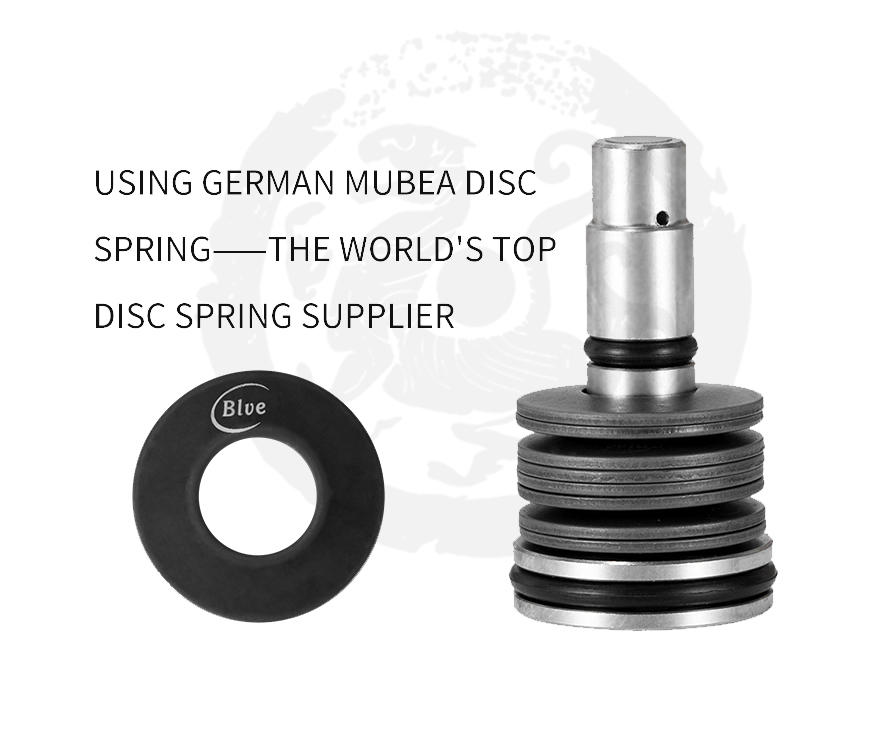

Precision Disc Spring
Valve constant pressure mechanism adopts precise disc spring, scientific stacking, continuous pressure recovery time is less than 0.3 seconds. The speed fluctuation is less than 5bar/min.

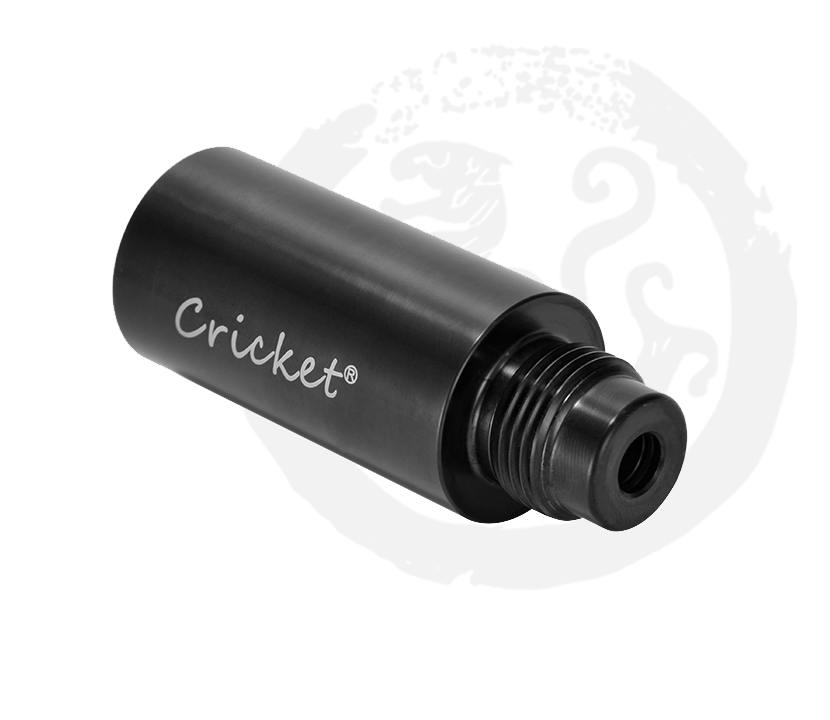

Tread Adapter
The tread adapter of cricket valve is made of stainless steel,which is the most precise part of whole valve and it will malfunction if there is an error. So we use a five-axis CNC to make it. To ensure the correctness of its size. At the same time, the roughness of the inner hole is also very important. You can imagine that the piston constantly reciprocates the inner wall of the valve under great pressure. If it is not handled properly, it will malfunction soon. Your valve will not be available. However,our products will not have such problems. Every product is processed by mirror surface treatment and filled with flame retardant grease. Friction is minimized during movement.
Stop Ring
The stop ring is a creative part. Our team invented it in 2009 to solve the problem that the original fixing ring of air force air gun will fall off during use due to design defects. All our cricket products will be equipped with it. You don't need to buy it separately.
Air Fill Nipple
We offer a variety of replaceable Air Fill Nipple to meet the different requirements of the initial speed of muzzle for different players. We offer tools for replacing the Air Fill Nipple for free, you can use it when you need it.
Testing
Graphs for Output pressure 135bar .22 weight 18.1grain
Result in air gun AirForce Condor
Warning
You must keep maximum cleanness in the entire pressure system (airtube and outer o-rings). Do not disassemble the regulator without previous approval, which will be awarded based on e-mail correspondence, where you provide the reason why it would be necessary to disassemble the regulator. In the case of breach this procedure you may damage the regulator function (fully assembled regulator is not simple and it is necessary to follow the correct procedure). For these reasons, the disassembly without previous consent,or failure exact installation procedure can not claim the warranty. Since regulator is not original part from the manufacturer’s, installation is on your own responsibility.
Shipment Contains
- Regulator
- 2 piece Nylon plug
- 1 piece spring for Air Fill Nipple
- 1 piece aluminium bar for removing air fill nipple
- 4 pieces 8×2 o-rings for inlet fill nipple
- 2 pieces 19×2 o-rings for Constant pressure bar
- 2 pieces 22×2.5 o-rings for thread adapter
- 2 pieces 26×1.9 o-rings for thread adapter
